Installation Guide for Hyundai SR DRL LED Lights

Obtained my own in the mailbox and went home instantly to set them on. Got me about an hour and was quite uncomplicated as soon as I identified the right way to do it. I could most likely do it in with regards to 30 min now. This is only for a GLS with no foglights so your knowledge may differ if you have fogs.

Step 1: Unplug the wiring harness on the Driver's side and put it into the SR harness. Put the SR harness into the headlight housing. I must cut away quite a few of the plastic protect over the wires so it would bend down simpler. I remaining the black ziptie on the DRL wires since it would reach without undoing all the wire.

Step 2: With a little phillips screwdriver, get rid of the two little plastic screw/fasteners that hold the top sprinkle shield to the base of the bumper:

Step 3: Draw the dash shield out from below the lip of the bumper and pull it back, you don't ought to remove it.

Step 4: Take away the phillips screw from the bottom part of the plastic foglight filler piece. I did not get rid of most the screws, I exclusively took the corner one out and pushed in on the cover to glide the wires in. You do not need to remove the whole foglight plastic cover.

Step 5: Get rid of the backing on the adhesive tape on the outer pieces of the DRL. Remove back the corner of the long piece on major of the DRL and fold it toward the front.

Step 6: (Clean the entire contact area carefully on the bumper, using rubbing alcohol and let dry first). After that suit the lighting in the area and press the corners in. Slowly but surely pull out the "tab" you folded and pull out the red backing of the tape while placed on the car. Push completely on the lights for several seconds to bond the tape. If you take away the completely long piece of the backing before you fit it on the vehicle, if you stick it on crooked, you won't be able to get it off.

Step 7: Get in touch the red and black wires and be sure they just click and lock.

Step 8: Fit the screw back in the foglight cover and set the nylon fasteners back into the splash shield.

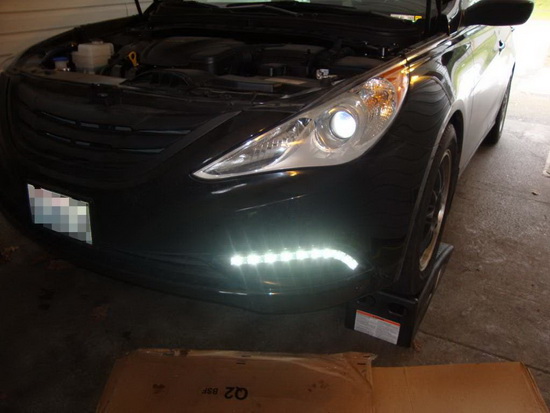

Here are a few daylight photos, night photos to appear when it gets dark:
